ID# H220.

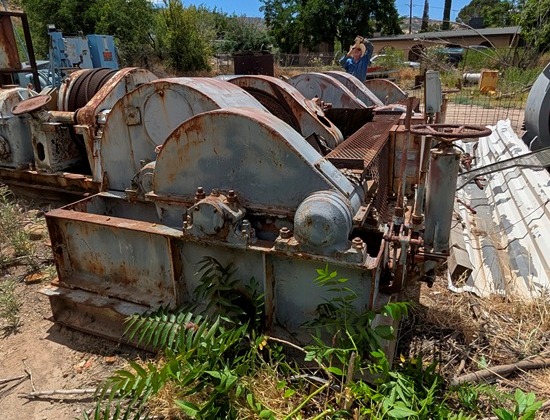

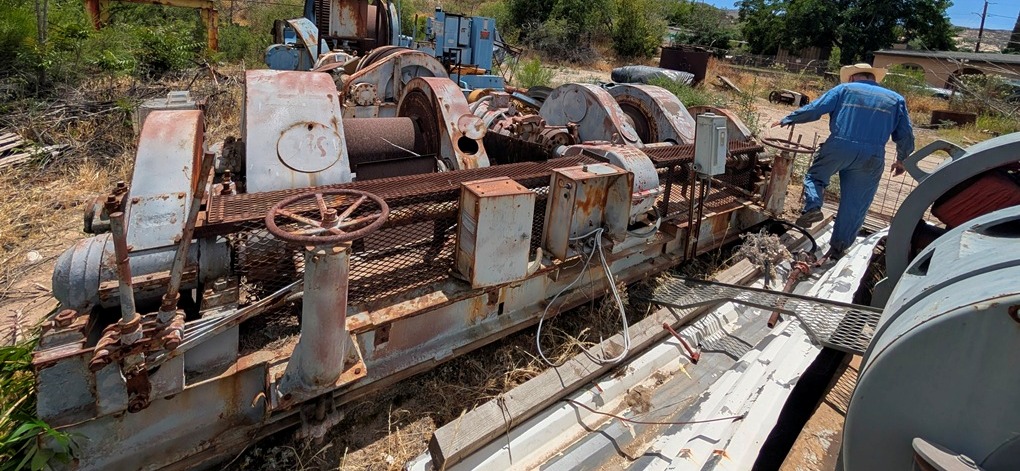

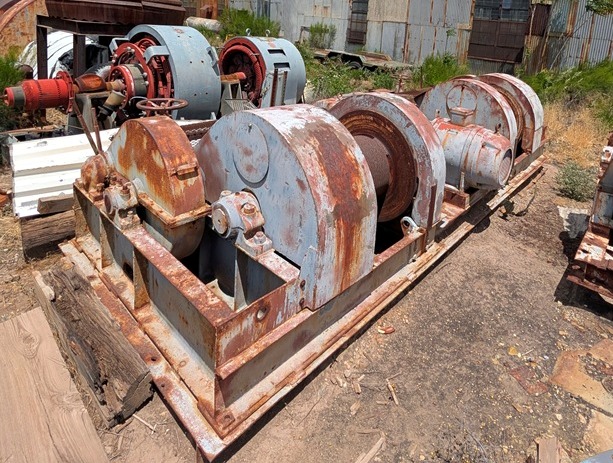

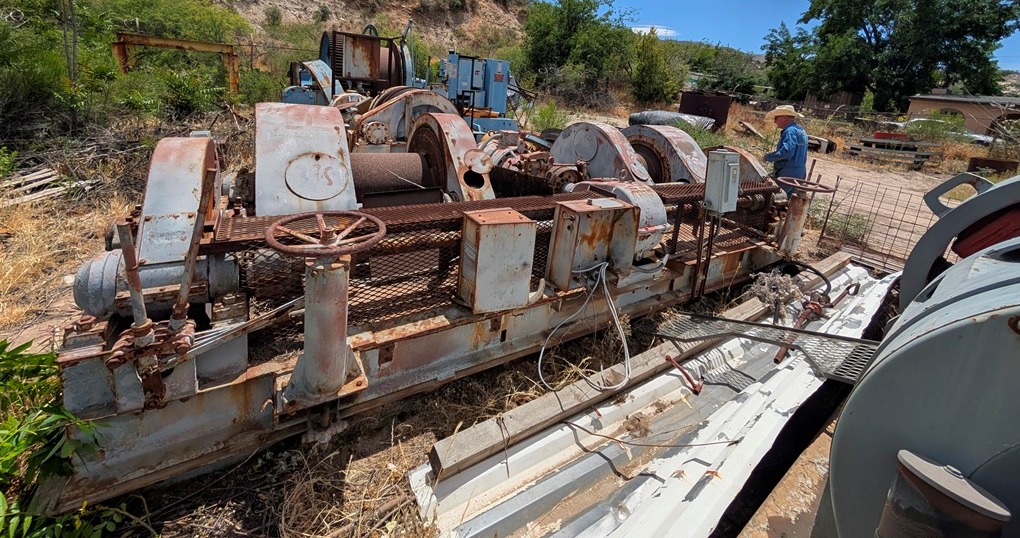

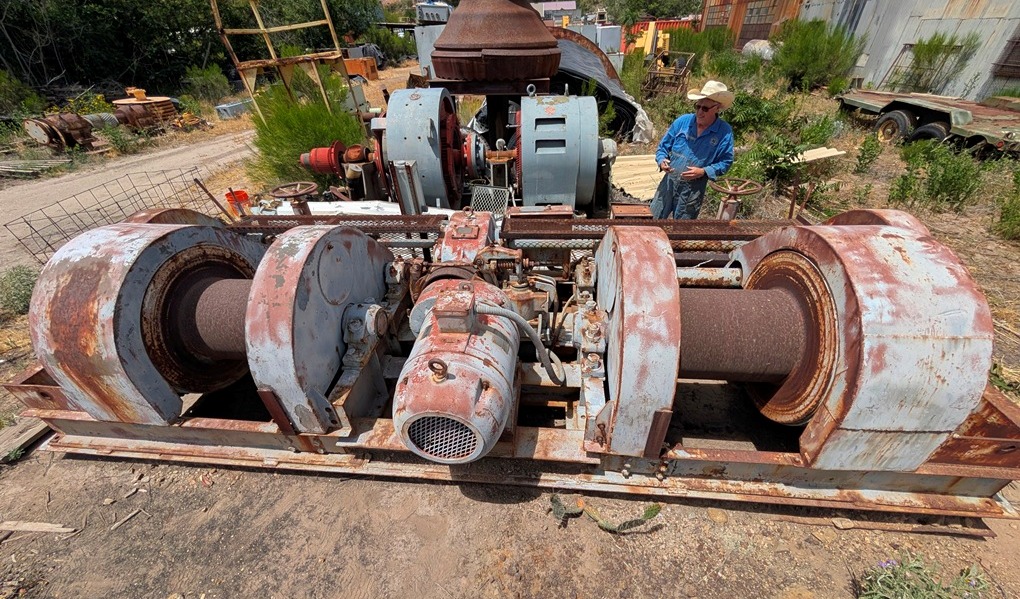

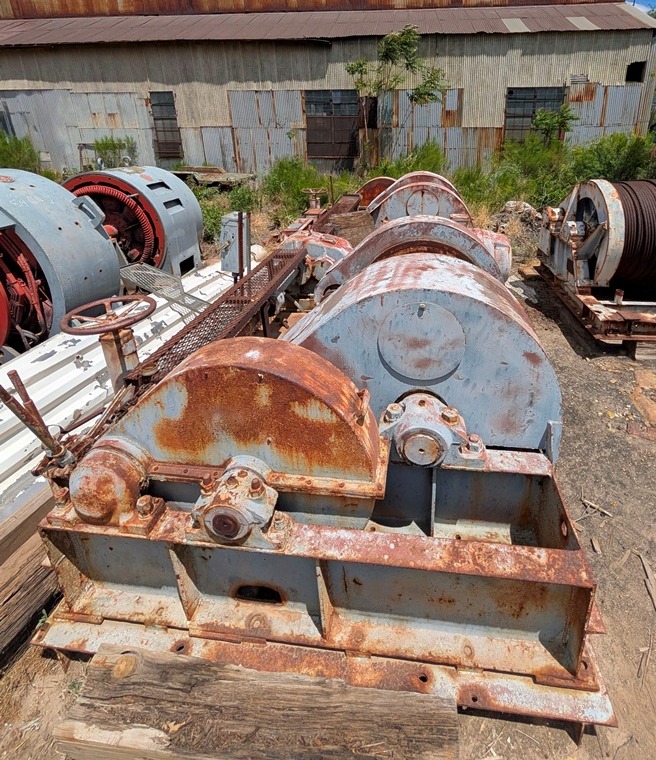

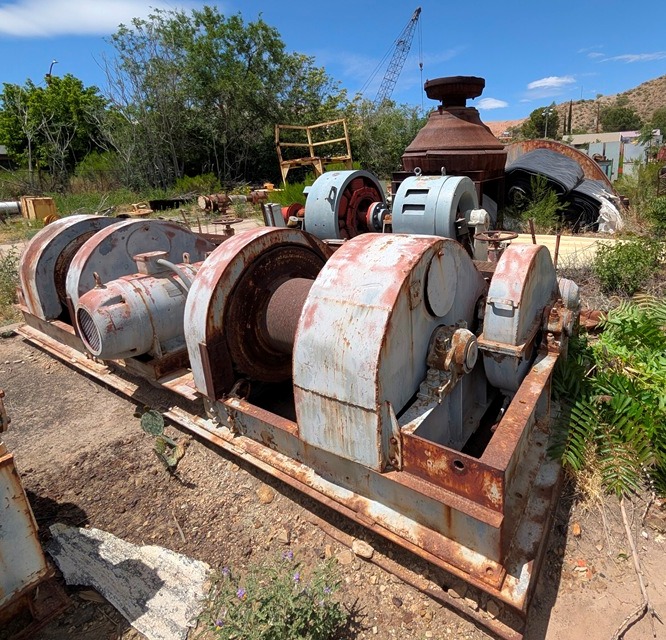

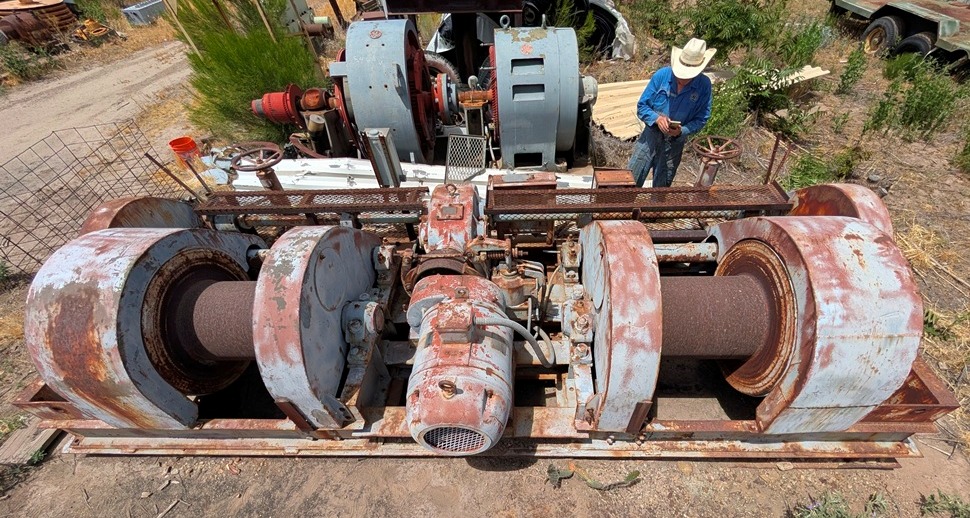

20 inch Double Drum Mine Winch for Sale

Double Drum Winch for sinking shaft or for tools and materials.

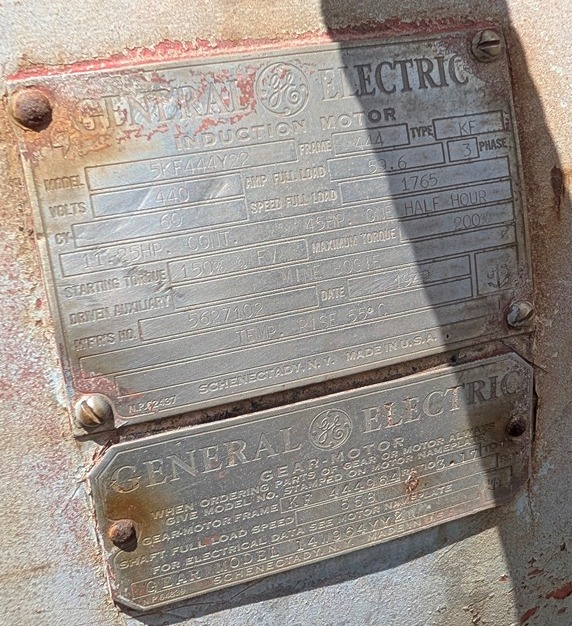

45HP Induction motor, 1765 rpm.

26" across face, 8" flange, 20" dia.Rope of up to 1".

Rope of up to 1".

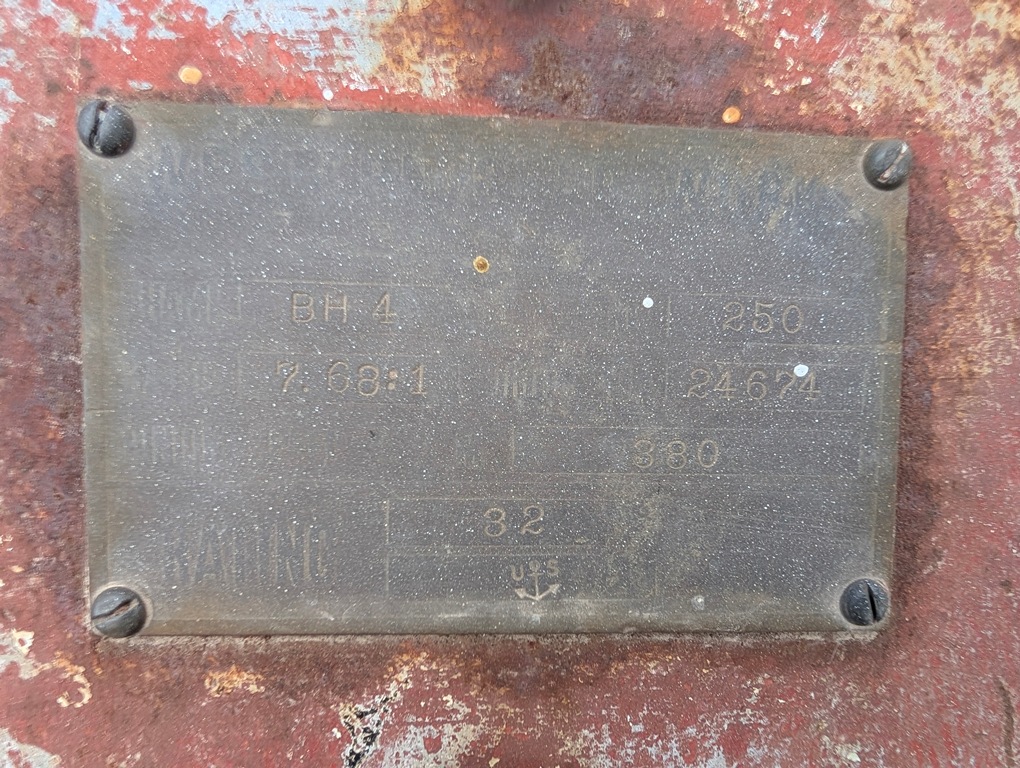

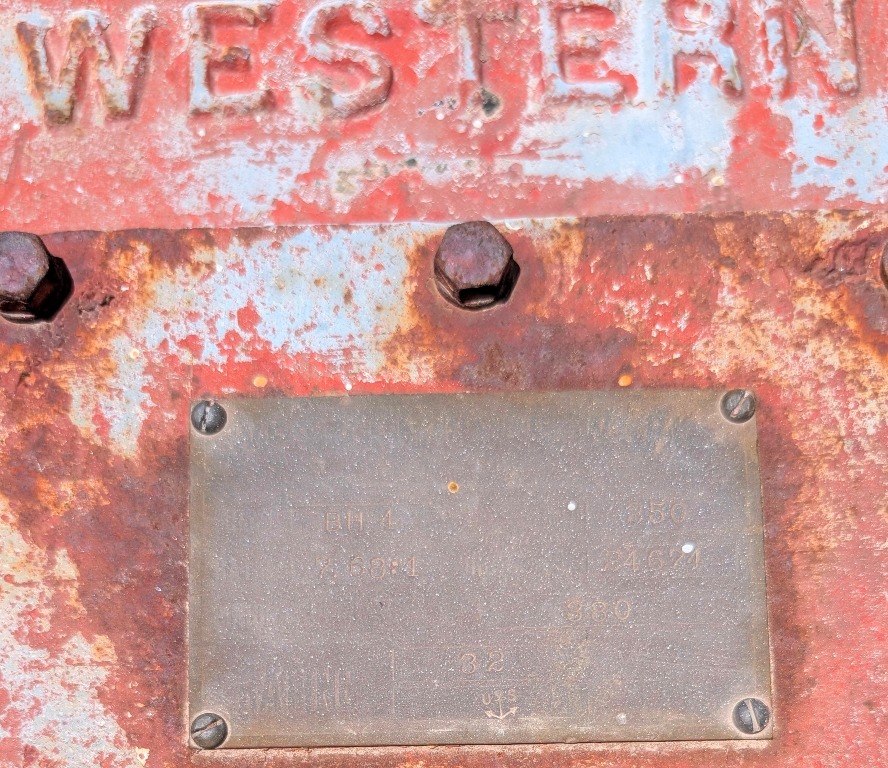

Gearbox Ratio 7.68 to 1.

Each drum with a band brake and clutchable.

3 rpm on the drum.

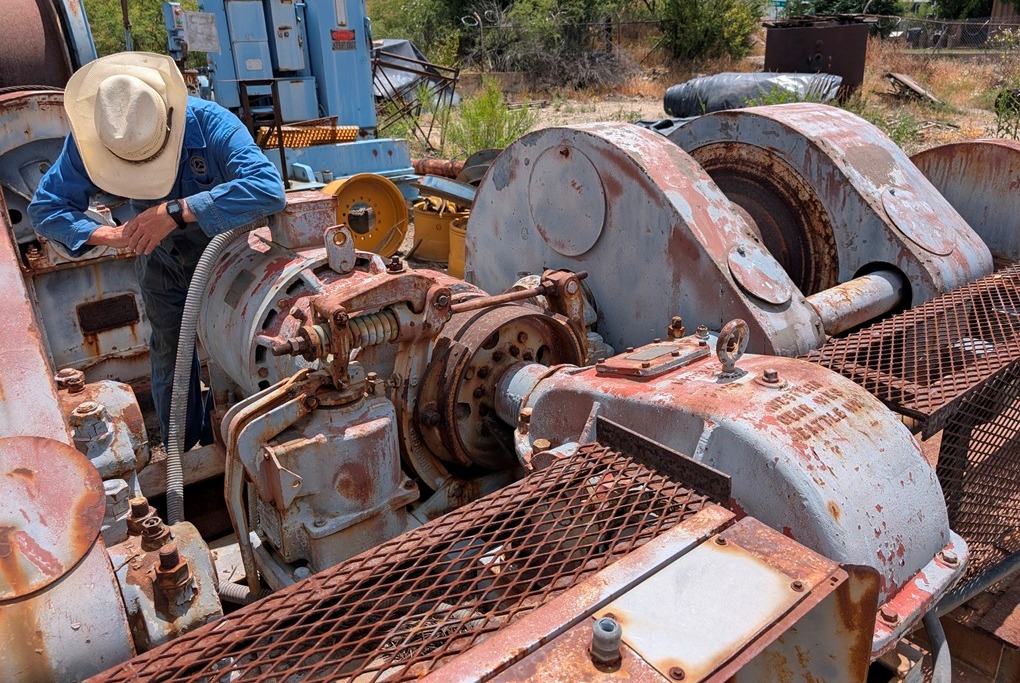

Electric brake on the pinion.

40,000 lbs line pull per drum.

Speed 16 ft/min first rap, 27ft/min last rap.

Weight 48k lbs for the winch and skid.

Location: Miami, Arizona.
